Home > Products > Multiple Color SMD > 5060

5060 RGBW15W-EI
5060 RGBW15W-EI
5060 RGBW15W-EI
Product Features:
1、LM-80 certified
2、With ceramic thermo-electric separation and eutectic packaging technology to achieve lower thermal resistance, good stability and good air-tightness
Product application:
Urban landscape lighting,
Outdoor portable lighting
......
Product Introduction
Related recommendations

Model Number

Power Typ
(W)

Power Max
(W)

Current Typ
(mA)

Current Max
(mA)

Voltage
(V)

CCT
（K）

CRI
（Ra）

Luminous Flux
(lm)

CX5060RGBW15W60001-EI

10

15

700

1200

2.4

620-630

/

60-80

3.3

520-530

/

150-170

3.3

460-470

/

40-60

3.3

6000

≥60

200-220

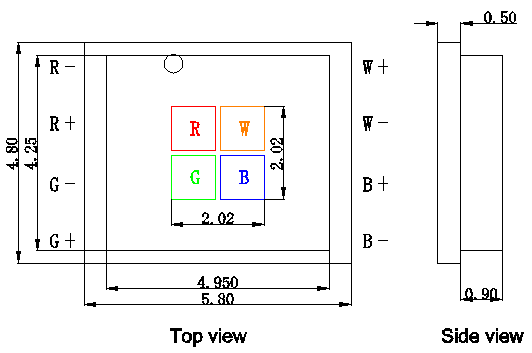

Product dimensions：

                                                                        5060 RGBW15W-EI



Related recommendations

5060 RGBW40W-EI

5060 RGBW40W-EI

Size:4.8*5.8mm
LES:4.25*4.95mm
Power:15~40W
